Rockshox totem coil service

May 4, 2008 at 12:47
by Dom greve
I struggled to find any info on servicing my fork so i thought id post some instructions up.Firstly dont try this if you have any doubts because you dont want to ruin tour fork. If you break your fork its not my fault you should send it to your LBS as you probably shouldn't have tried it yourself any way. Its really easy to service a totem.

Oils:

5wt fork oil.i use a 3wt oil in the winter as the lighter weight allows the fork to operate as usual but in colder conditions.

15wt oil for speed lube aplication.


1st Step

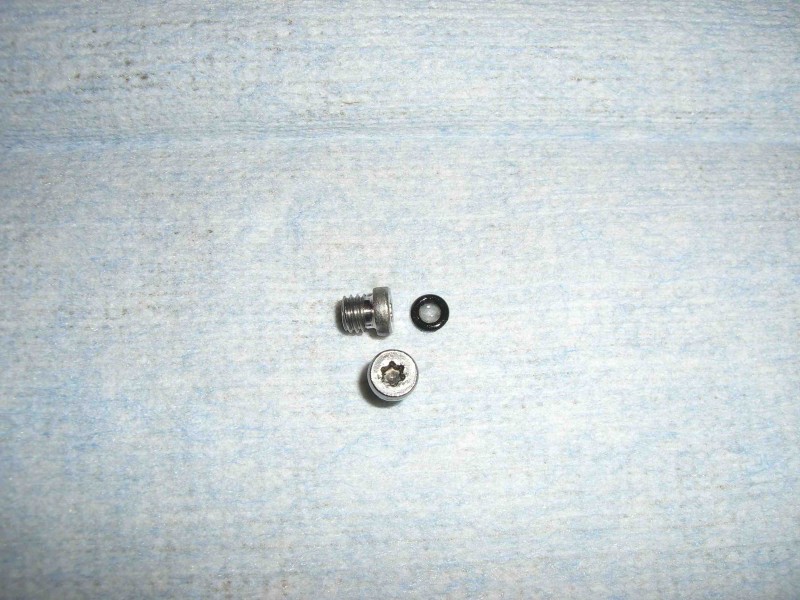

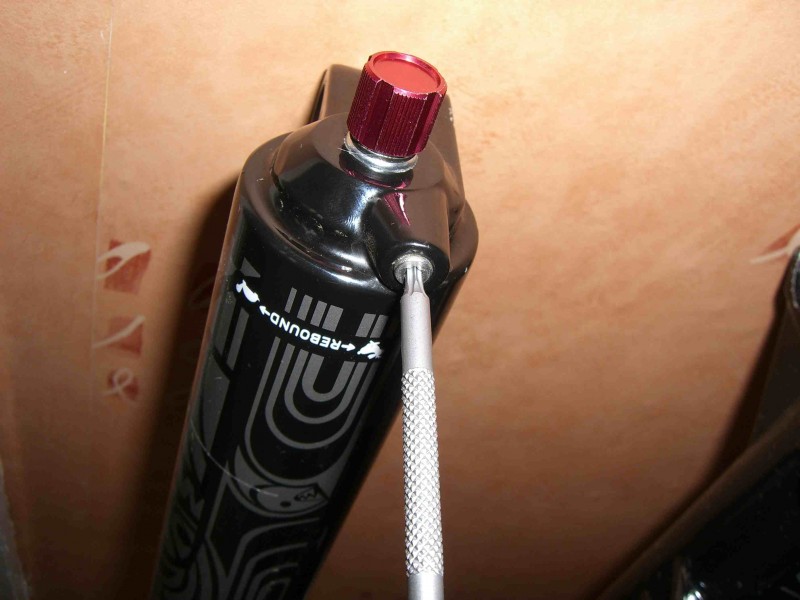

Remove the oil from the bottom of the fork. unscrew the little screws at the bottom of your fork. there are two. one on each side.

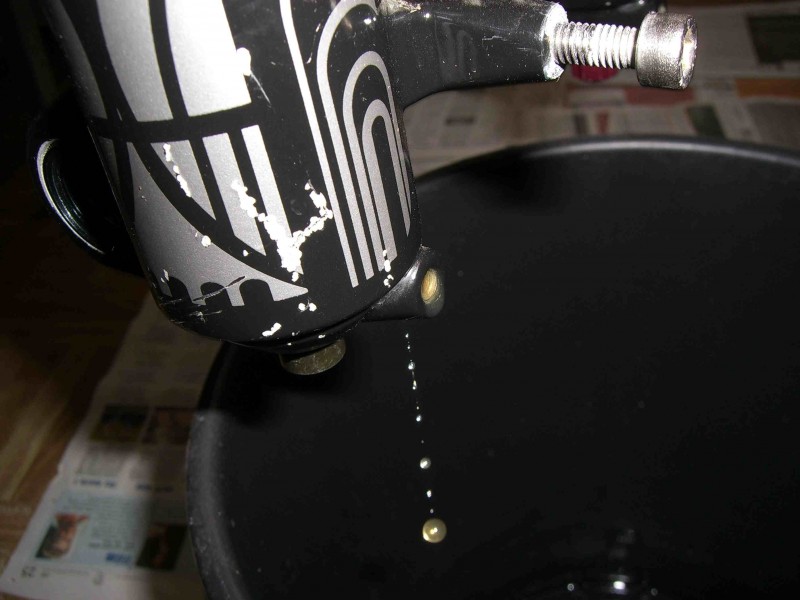

Then turn your fork the right way round and leave to drain in a tub or bucket for a thew minutes. Be careful you dont loose the little O-rings.


1998671


1998666


1998669

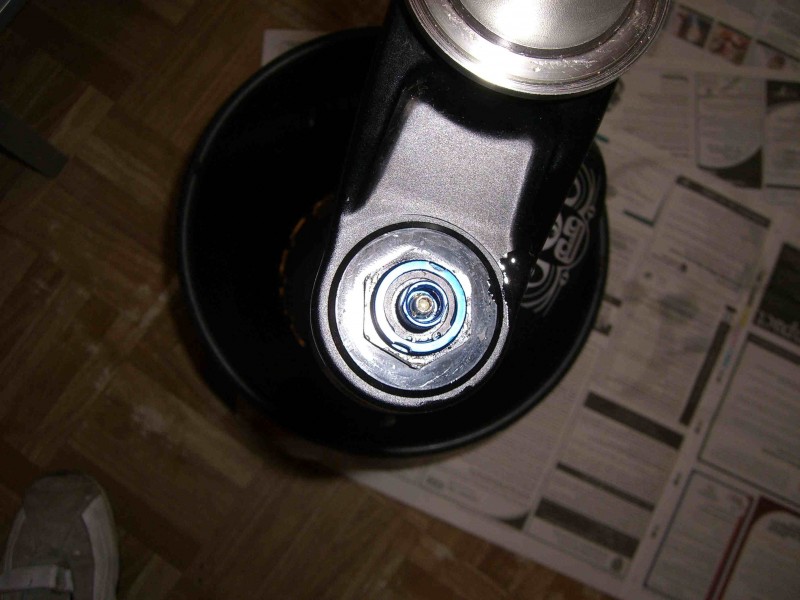

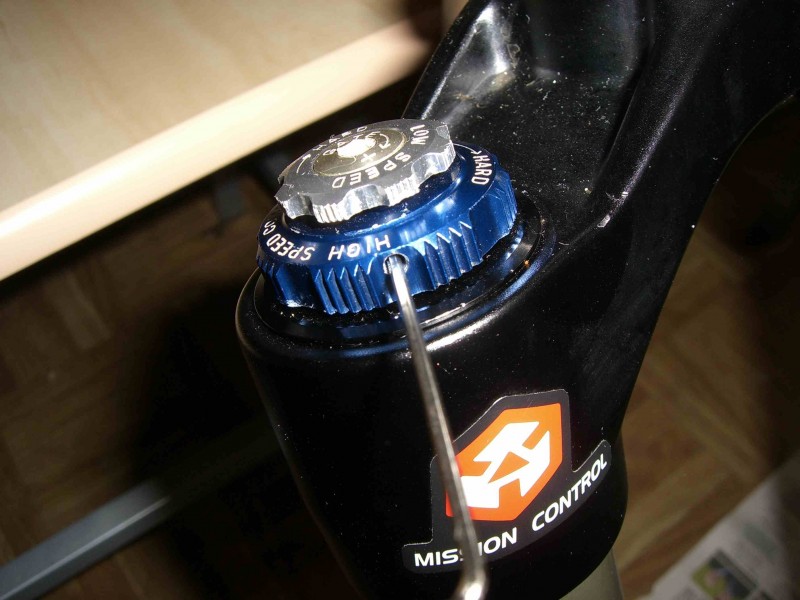

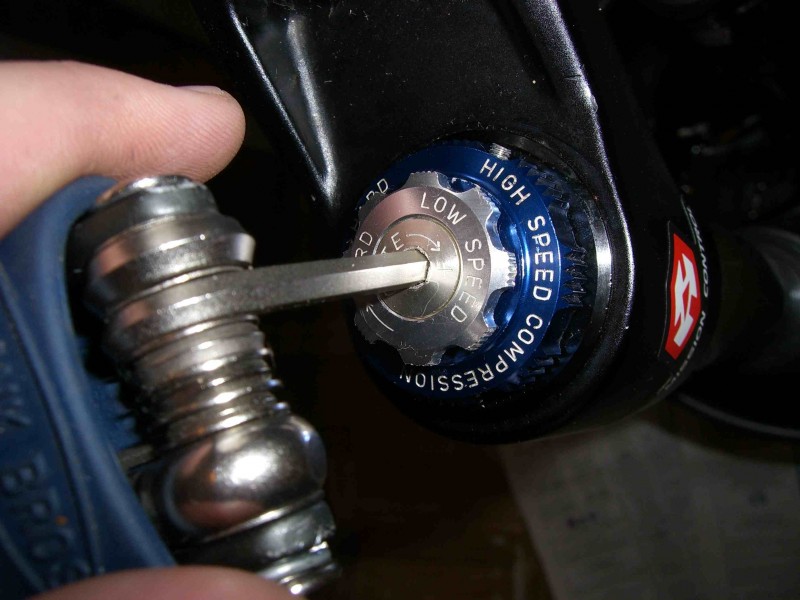

2. Next remove the mission control knobs. Ensure that the floodgate know is open. it will be sticking up when open. there are two secure screws on the high speed dial to undo. use a 2mm hex key for that. then unscrew the hex in the centre of the low speed dial and then both dials will just come of easily.


1998665


1998663


1998662

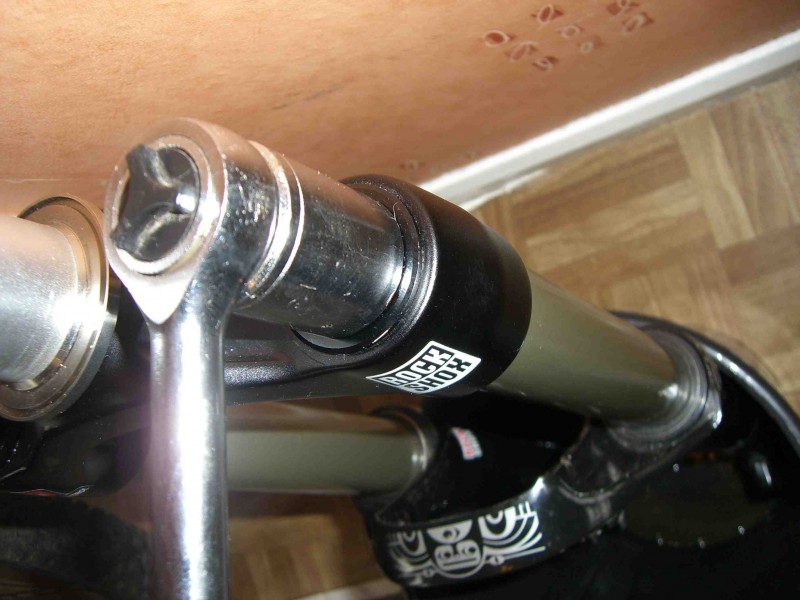

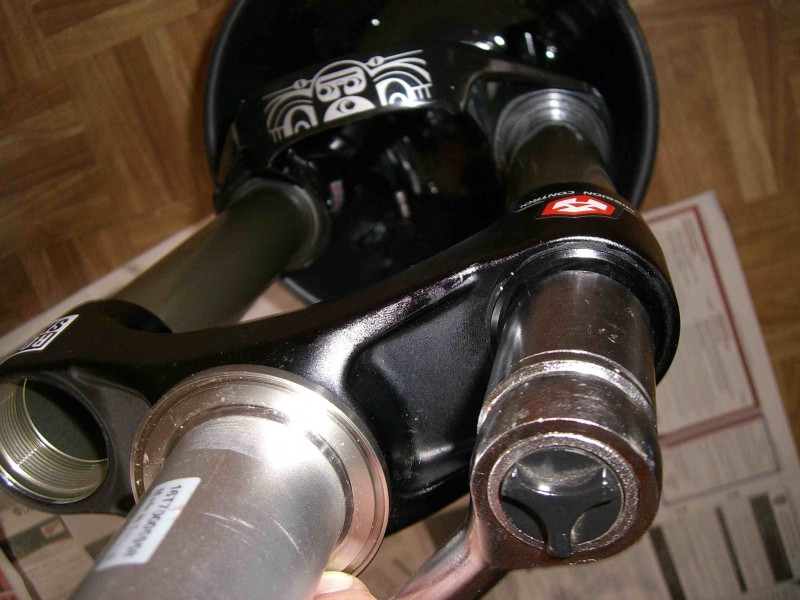

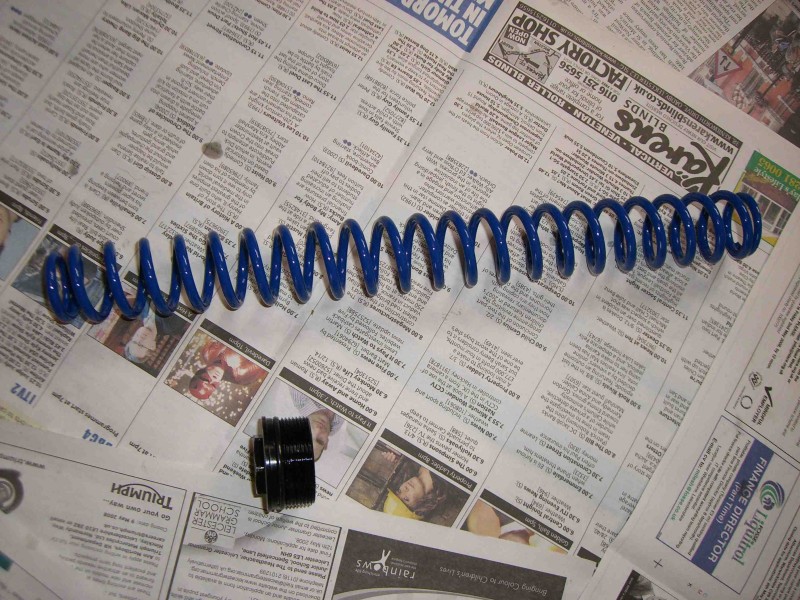

3. Next remove the spring assembly and preload spacers. undo the cap on the top of the left leg. once done the spring just pulls out nice and easy with little mess.

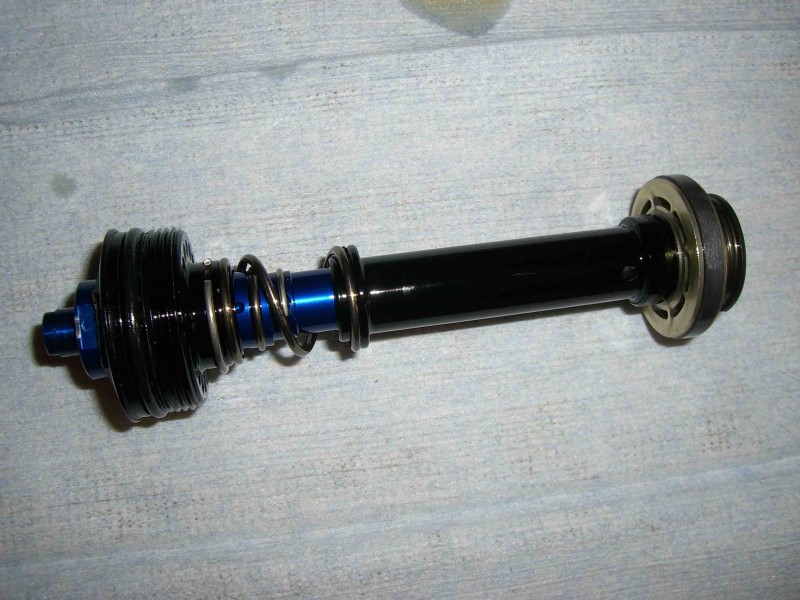

Then move on to the tight side. unscrew and slowly and gently remove the mission control damper. make sure the floodgate is in the of position. all the way in so the oil can flow out.

Turn the fork upside down and remove all the oil.


1998661


1998660


1998659


1998657

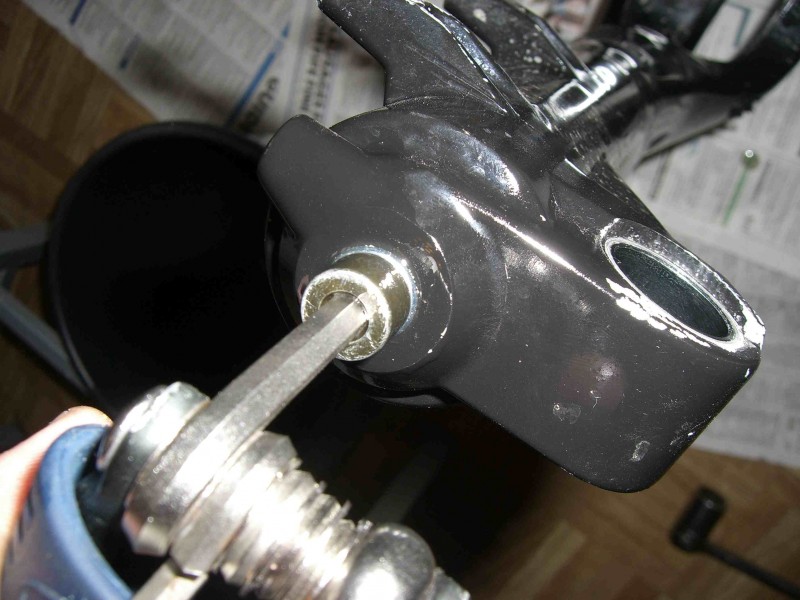

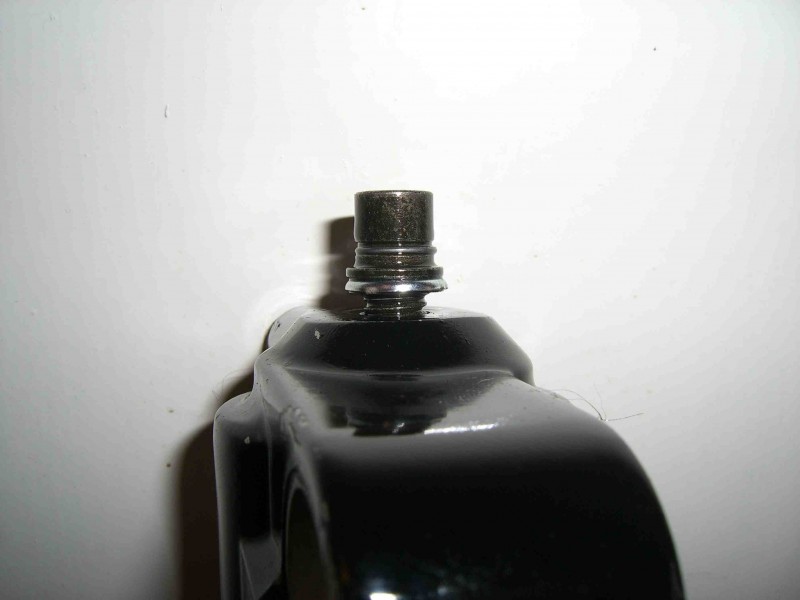

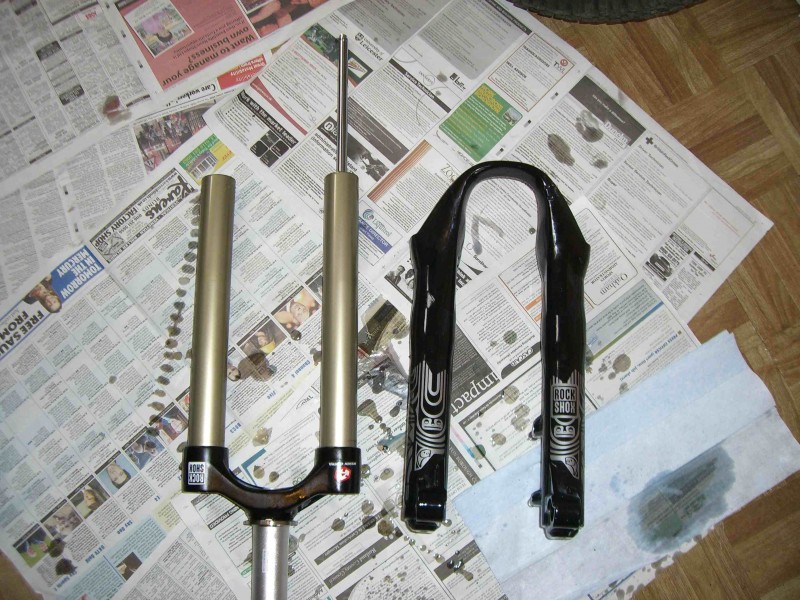

4. Separating the lowers. Undo both hex bolts at the bottom of the fork but on the right leg the one with the now removed rebound dial leave the bolt in slightly as you need to use a rubber mallet or wooden hammer to tap the legs apart and they will just push the lowers apart.


1998655


1998654


1998652

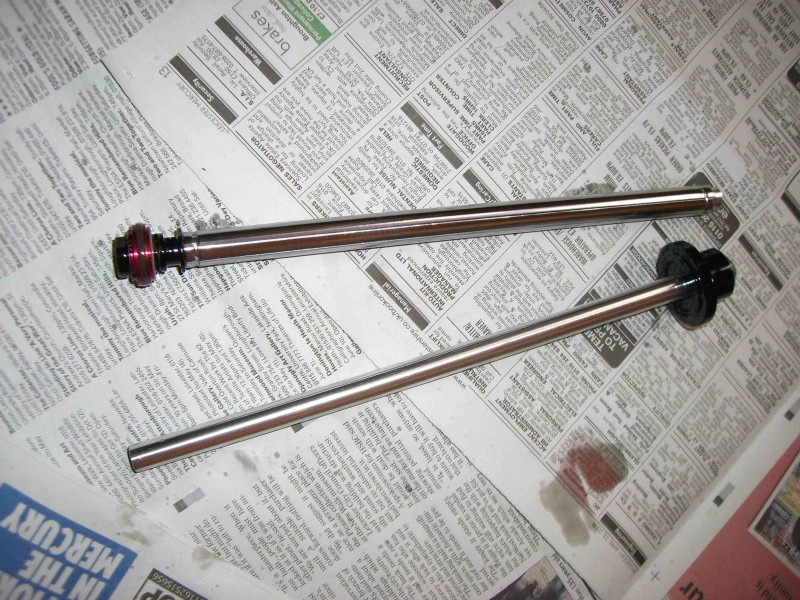

5. Now remove the rebound valve and the push rod from the inside of the Stanchions.


1998648

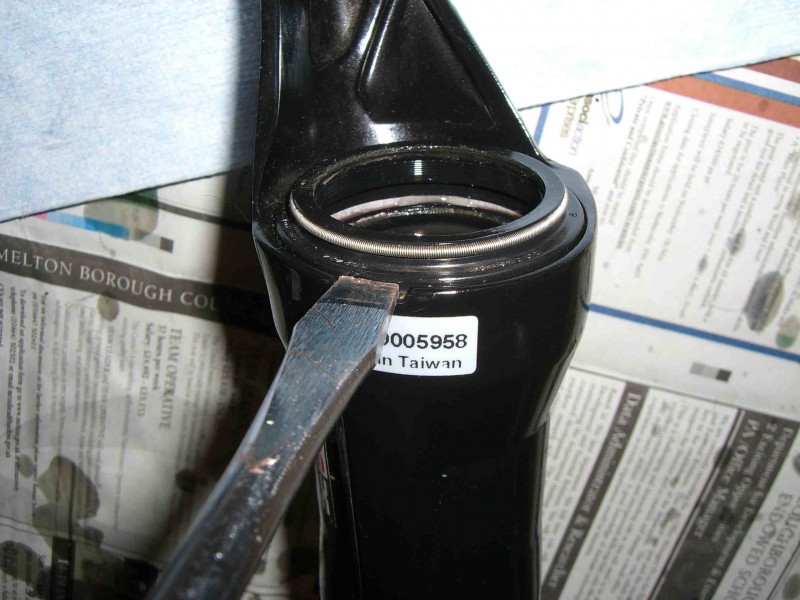

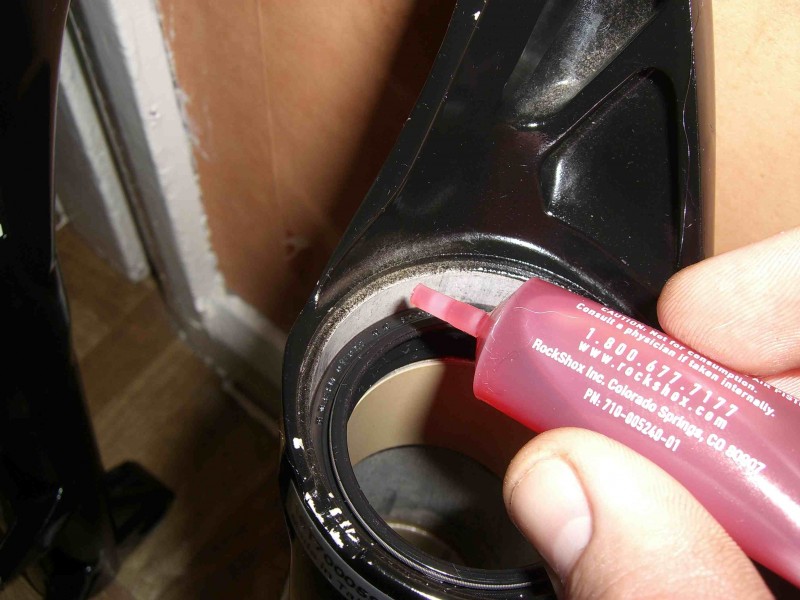

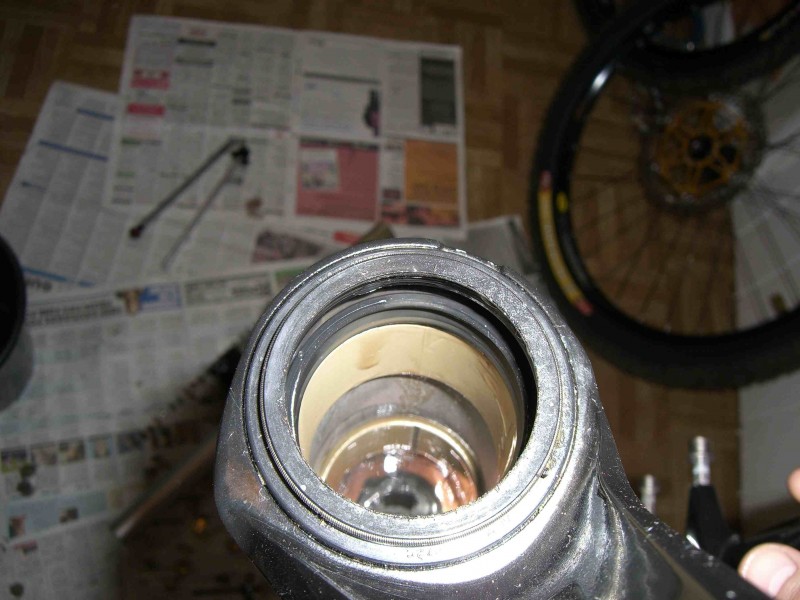

6. Pop out the seal with a screw driver and give them a good clean. Use fork oil to clean everything. Push them back in by hand and lube them up with some rockshox red rum. about £5 for a tube.


1998644


1998642


1998646

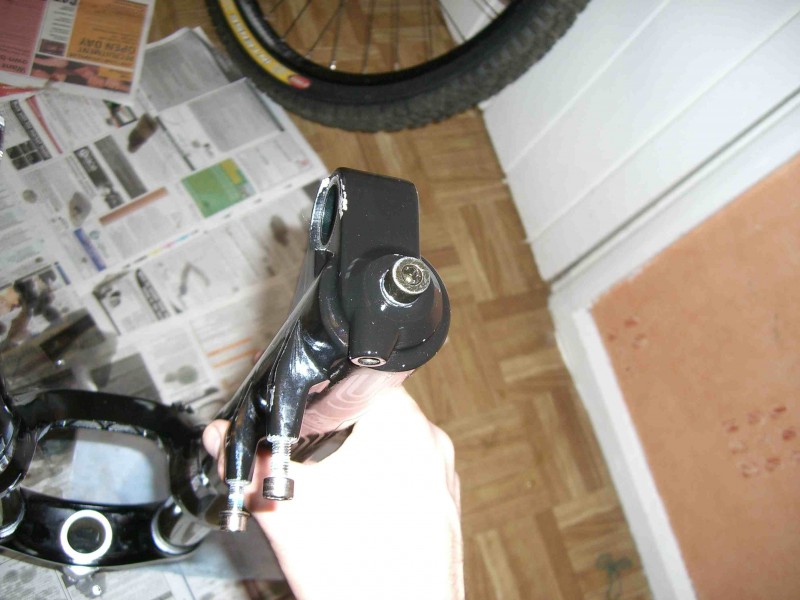

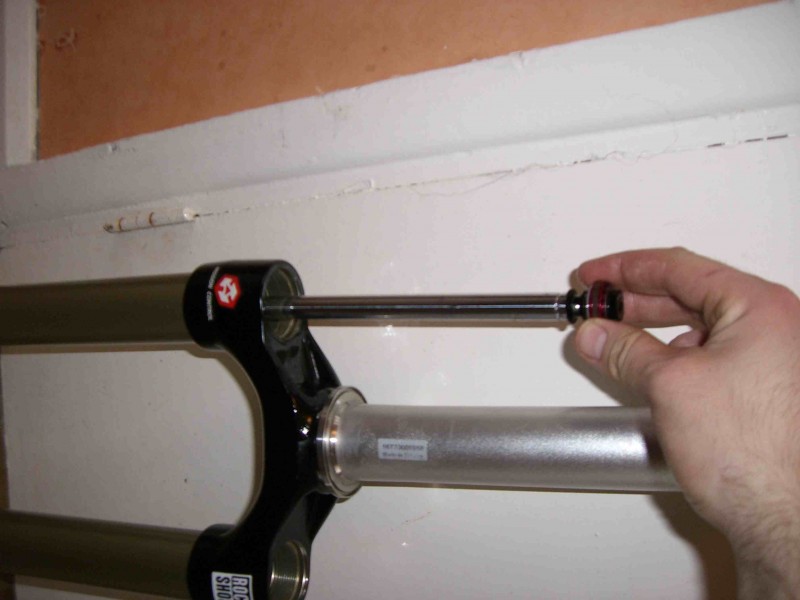

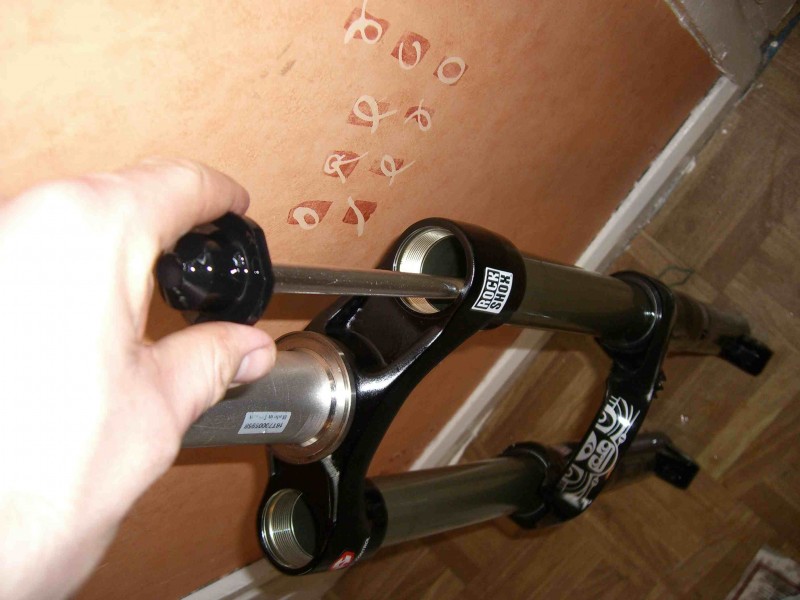

7. Now push the stanchions back into the lowers and insert the rebound valve and the push rod back inside. Rescrew the bolts at the bottom of the fork to fasten the pushrod and rebound valve.


1998639


1998636


1998633

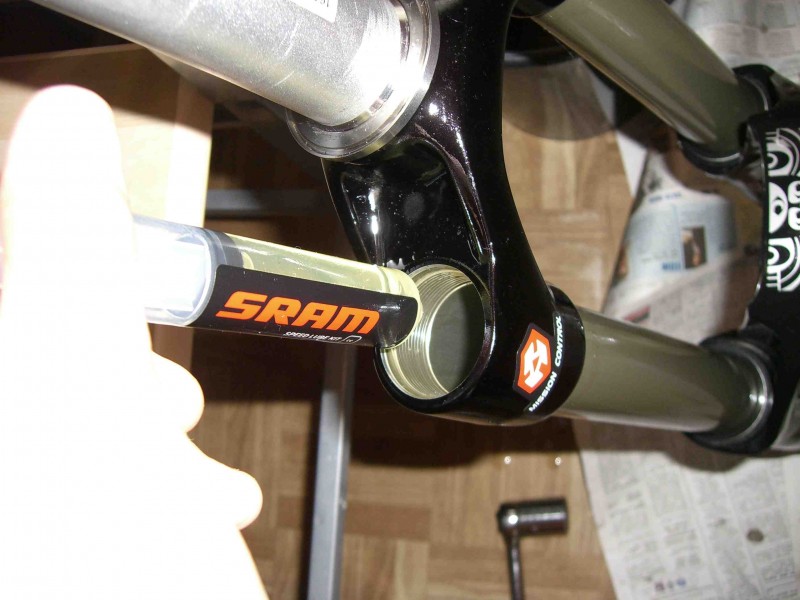

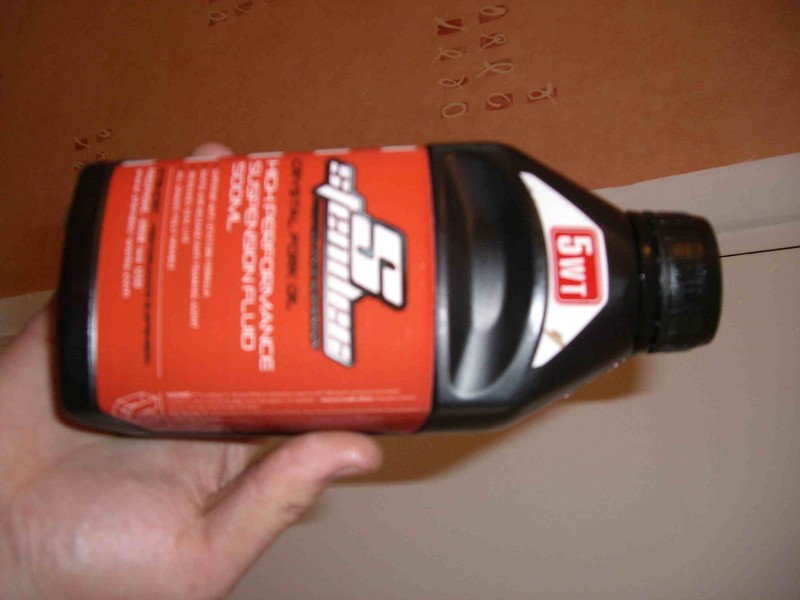

8. Now replace the oil. use a 5wt oil or 3wt if cold conditions. measure out 137ml and poor this into the right leg where the mssion control damper will go in.

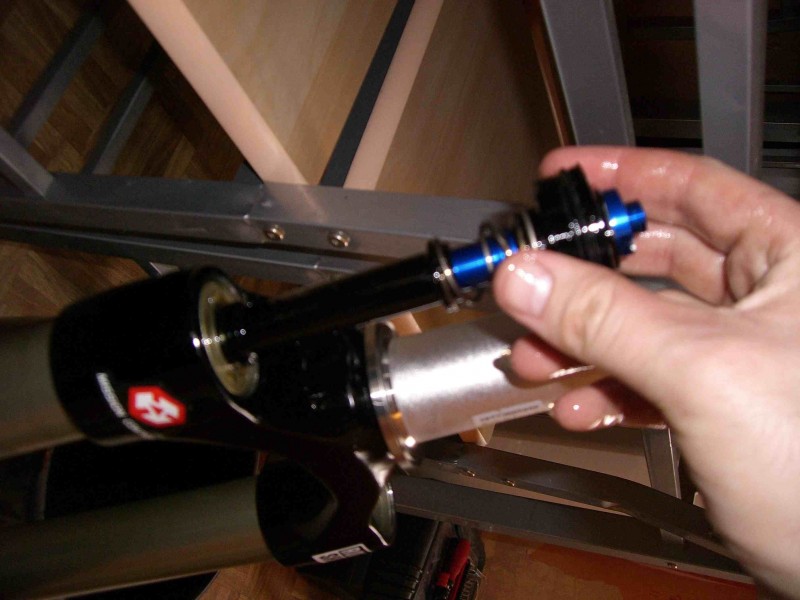

Now slowly put the mission control damper back in. be careful not to damage anything. and now tighten up.

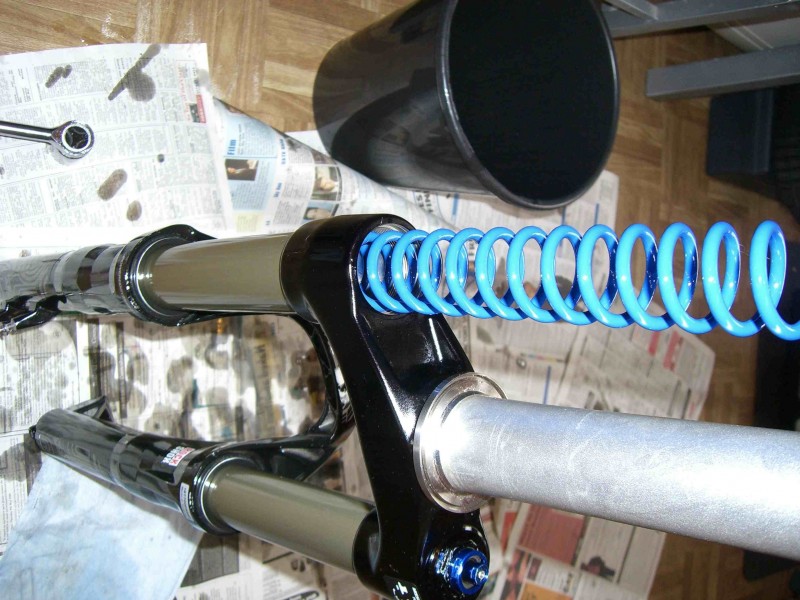

Put the spring back and righten up. almost done now.

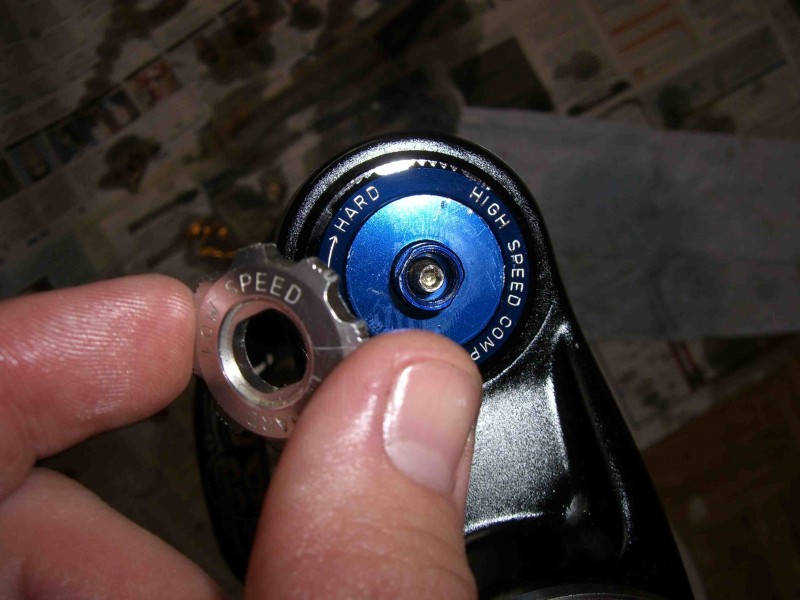

Put the mission control knobs back on. start with the blue the the low speed silver dial and finaly the gate screw and tighten up.


1998632


1998630


1998627


1998626


1998623


9. Last bit. speed lube application is really easy. use 15wt oil for this. at the bottom of the fork on both side's where we drained the oil from in the 1st step.

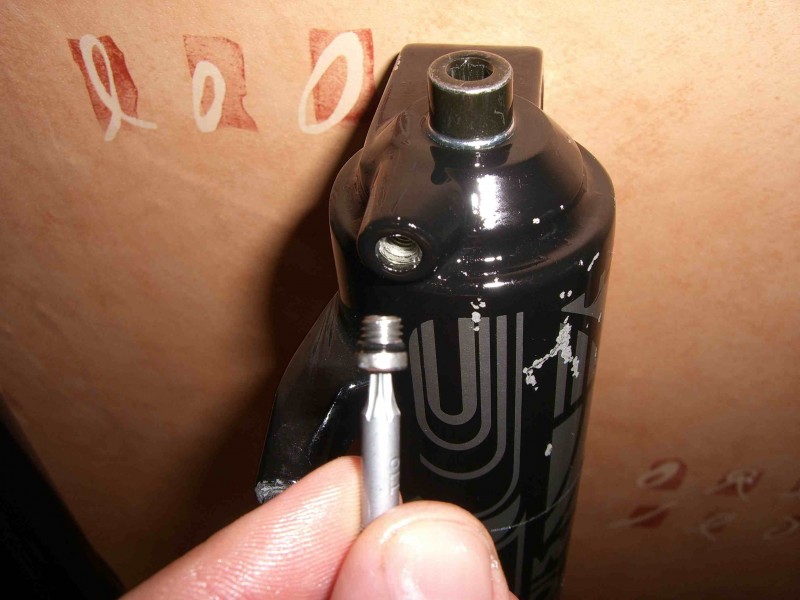

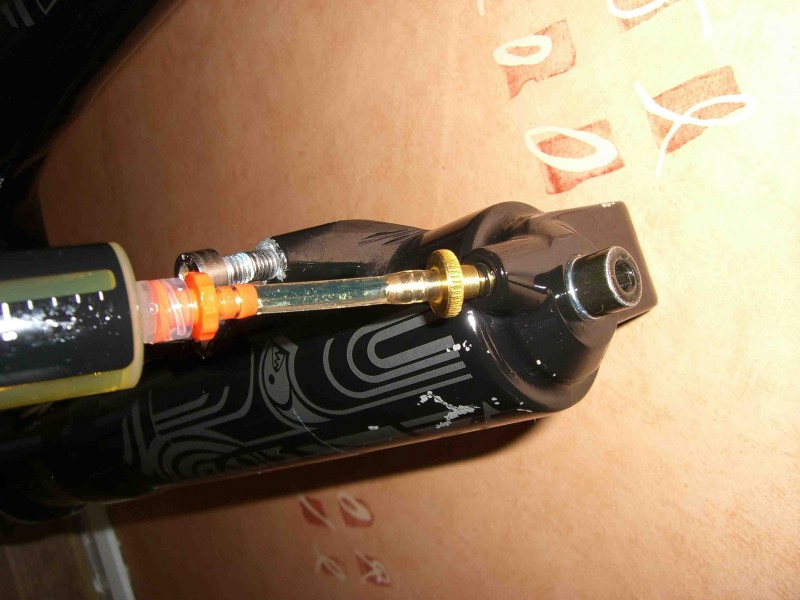

fill up a searing with 20ml of oil (15wt) and screw into the holes and insert the oil. Replace the screws making sure the little rubber o-rings are still in. Thats it all done. clean up the fork remove all execs oil and your good to ride. For the 1st ride oil will appear on the stancions but its ok the seals are not leaking they are just lubricating properly.



1998621


1998618



Author Info:
dg85 avatar

Member since Oct 14, 2007
1 articles

16 Comments
  • 2 0
 This is still a great how-to write up (better than '09 black-and-white PDF by RockShox/SRAM). I review it every time I need to do the yearly full service.

This time around, though, it was really a biAtch to remove/install the oil seals (dust seals are still finger-easy) - so much so that I had to ask LBS help for just that segment, and I continued to finish it up.

Anyway, thanks again for posting this!
  • 2 2
 i know it says 137ml in right leg, but how full in the left like 3/4 full or? first time ever doing shocks so i put that same 137 in the left and i went riding last night and seemed low so any tips
  • 3 0
 Great guide!
Should Judy Butter go in at some point?
  • 0 0
 sick yh sounds a bit harder than servicing Boxxer (which i do )but once you have done it a couple of time i wont take more than 1/2 an hour will it??
  • 1 0
 Wowza, does seem a lil complicated but as super real said prob fine after a couple of attempts!? I hope! Hahaa
  • 1 0
 ha its pretty easy once you get started its just like a rather messy puzzle Razz
  • 3 0
 More detailed instructions than SRAM PDF's or you tube videos. Thanks
  • 2 0
 if you only have 5wt oil, is is possible to use that in place of where the 15wt should go? and can you just pour it in without a syringe? thanks
  • 1 0
 Hey, if you don't use the speed lube port thingy (ie I dont have the syringe), what do you do differently?
Ta, Duane.
  • 1 0
 Buy a syringe from a chemist.
  • 1 0
 You can just invert the fork and pour the oil in through the holes at the bottom before you install the foot nuts.
  • 1 1
 Hey guys, can we change this totem for 130 mm travel?... because now i just bought a bike with a totem 130mm 2008? i search on internet and all totem are 180mm... thanks
  • 1 0
 Got an account just to say thanks! The guide was super helpful, well written and explained!
  • 1 0
 Cant beat a good service step by step! Nice One!
  • 1 0
 Nice!
  • 1 0
 Brilliant, cheers.
